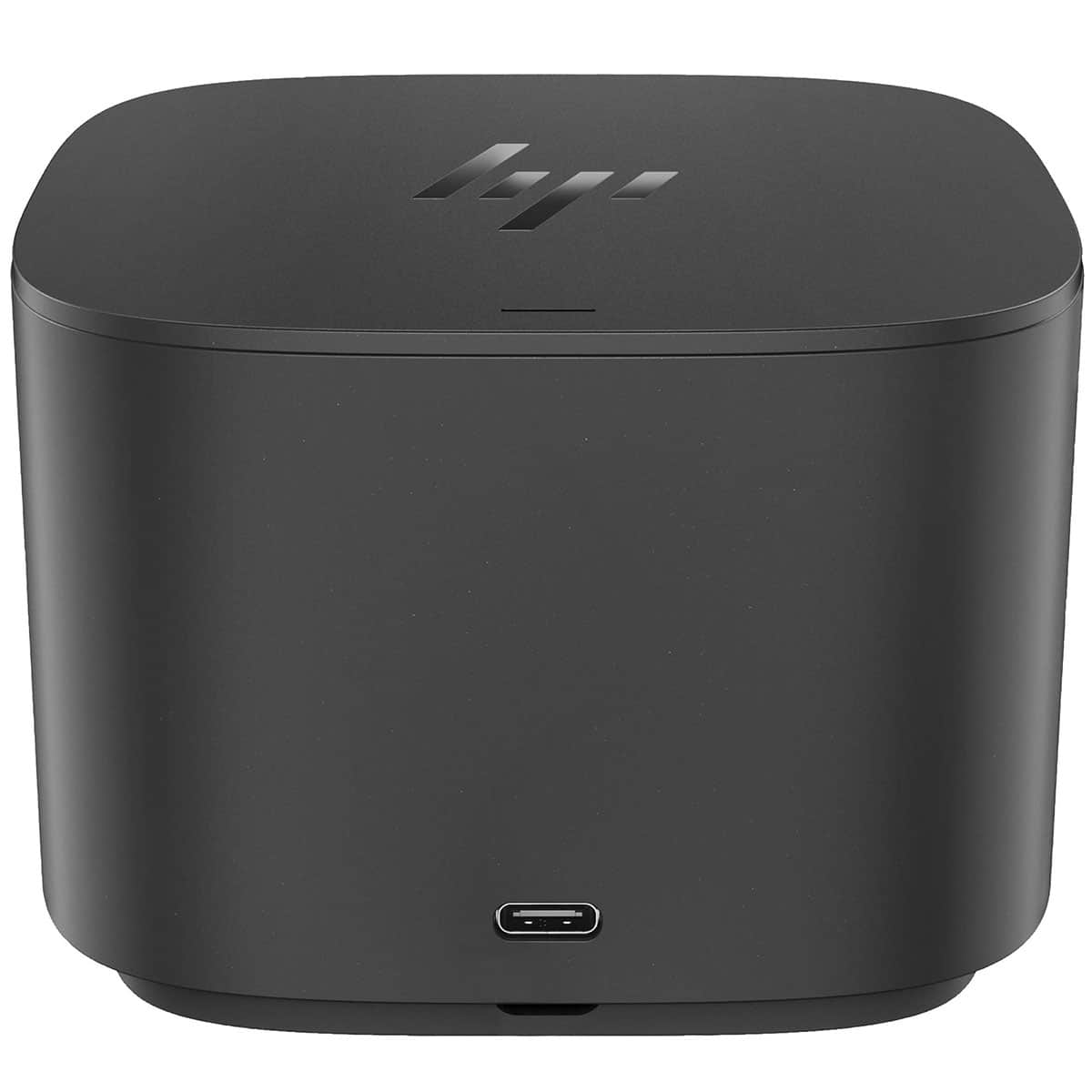

HP Thunderbolt Dock 120W G2 Docking Station

Top components: LED and power button to power or wake host system
Front components: 1x USB-C® 3.2 Gen 2 port with data and power out (15W) | 1x USB-C® cable to connect to host system (0.7meter cable length)
Side components: 1x USB-A 3.0 Gen 1 charging port | 1x Combo audio Jack | 1 x Standard lock slot
Back components: 1x Thunderbolt™ port | 1x USB-C® 3.2 Gen 2 port with DisplayPort™ 1.4 data and power out (15W) | 2x DisplayPort™ 1.4 ports | 1x VGA port | 2x USB-A 3.0 Gen 1 ports | 1x RJ45 port | 1x AC adapter connector (7.4mm)
Network manageability features: PXE Boot | Wake on LAN (from the Off, Sleep or Hibernation States) | MAC Address Pass Through (from the On, Off, Sleep or Hibernation States) | WLAN-LAN Switching
Power delivery (PD) profiles: PD 3.0: 5V/5A, 9V/5A, 12V/5A, 15V/5A, 20V/5A
Networking: Supports 1 Gb of Ethernet

KSh 35,000.00

Compare

Add to wishlist

Description

Turn heads and change minds with a stylish, modern expansion solution
Reinvent docking and boost productivity with the world’s most versatile Thunderbolt™ dock the small, sophisticated HP Thunderbolt Dock G2. Designed for workspace flexibility and network manageability, it delivers USB-C™ device connectivity and optional integrated audio.

Technical Specifications

Top components: LED and power button to power or wake host system

Front components: 1x USB-C® 3.2 Gen 2 port with data and power out (15W) | 1x USB-C® cable to connect to host system (0.7meter cable length)
Side components: 1x USB-A 3.0 Gen 1 charging port | 1x Combo audio Jack | 1 x Standard lock slot
Back components: 1x Thunderbolt™ port | 1x USB-C® 3.2 Gen 2 port with DisplayPort™ 1.4 data and power out (15W) | 2x DisplayPort™ 1.4 ports | 1x VGA port | 2x USB-A 3.0 Gen 1 ports | 1x RJ45 port | 1x AC adapter connector (7.4mm)

Network manageability features: PXE Boot | Wake on LAN (from the Off, Sleep or Hibernation States) | MAC Address Pass Through (from the On, Off, Sleep or Hibernation States) | WLAN-LAN Switching

External monitor support:
For hosts that support DisplayPort 1.4 with Display Stream Compression: 3x FHD @ 60 Hz | 3x QHD @ 60 Hz | 3x 4K @ 60 Hz
For hosts that support DisplayPort 1.3/1.4: 3x FHD @ 60 Hz | 3x QHD @ 60 Hz | 1x 4K @ 60Hz
For hosts that support DisplayPort 1.2: 3x FHD @ 60 Hz | 2x QHD @ 60 Hz | 1x 4K @ 60Hz

Power delivery (PD) profiles: PD 3.0: 5V/5A, 9V/5A, 12V/5A, 15V/5A, 20V/5A
Networking: Supports 1 Gb of Ethernet

Power to system: Up to 100W via USB-C®. | Up to 75W on non HP machines. | For HP ZBooks that require more than 100W power delivery should use the 3TR87AA | HP Thunderbolt Dock 230W for 200W of power delivery

Operating voltage and current: 19.7 V dc @ 6.1 A – 120W | 19.7 V dc @ 11.8 A – 230W

Temperature (operating): 0° C to 35° C (32° F to 95° F)
Relative humidity noncondensing (operating): 10 % to 90 %

Dimensions (H x W x D): 3.9 x 3.9 x 2.7 in (98 x 98 x 69 mm)
Weight: 0.8 kg (1.76 lbs )
